Anti Corrosion Heavy Duty Garage Racking , Q235B Cold Steel Steel Racking System

Guangdong Lijin Storage Equipment Co., Ltd.
Contact Now
    Buy cheap Anti Corrosion Heavy Duty Garage Racking , Q235B Cold Steel Steel Racking System from wholesalers

    Buy cheap Anti Corrosion Heavy Duty Garage Racking , Q235B Cold Steel Steel Racking System from wholesalers
    • Buy cheap Anti Corrosion Heavy Duty Garage Racking , Q235B Cold Steel Steel Racking System from wholesalers
    • Buy cheap Anti Corrosion Heavy Duty Garage Racking , Q235B Cold Steel Steel Racking System from wholesalers
    • Buy cheap Anti Corrosion Heavy Duty Garage Racking , Q235B Cold Steel Steel Racking System from wholesalers
    • Buy cheap Anti Corrosion Heavy Duty Garage Racking , Q235B Cold Steel Steel Racking System from wholesalers
    • Buy cheap Anti Corrosion Heavy Duty Garage Racking , Q235B Cold Steel Steel Racking System from wholesalers

    Anti Corrosion Heavy Duty Garage Racking , Q235B Cold Steel Steel Racking System

    Ask Lasest Price
    Brand Name : Generalization
    Model Number : HD-316
    Certification : AS4084, ISO9001, ISO14001,ISO18001,MTS
    Price : Depends on the racks
    Payment Terms : T/T or L/C
    Supply Ability : 3000pcs per month
    Delivery Time : 20 working days after received your payment
    • Product Details
    • Company Profile

    Anti Corrosion Heavy Duty Garage Racking , Q235B Cold Steel Steel Racking System

    AS4084 Confirmed factory for warehouse heavy duty storage racks

    Certificate: AS4084, ISO9001, ISO14001,ISO18001,MTS

    Please inform us the listed questions in your inquiry for quick quotation:

    A) The warehouse layout plans
    B) The size of Heavy Shelving Storage Rack g(length*width*height)
    C) How many bays you want
    D) How many layers for each bay that you want
    E) The loading capacity of each layer
    F) Choose steel panel or wooden veneer

    G) The RAL color you want

    Anti Corrosion Heavy Duty Garage Racking , Q235B Cold Steel Steel Racking System


    Specifications:


    1. Features

    Infinitely adjustable and offering a wide range of options and components to

    accommodate specialized needs.

    Maximizes space use in any warehouse configuration while retaining

    optimum product accessibility.

    Rapid handling of almost all types of palletised goods.
    Pallets can be located, accessed and moved individually.
    Strength and rigidity prevents compression damage to goods.
    Bottom level of pallets can be stored on the floor, lowering structure costs.
    2. Load Capacity & DimensionLoading capacity: 800-6,000 kgs/beam level
    Height: 1,000-11,000mm
    Depth: 400-1,500mm
    Length: 1,500-3,300mm
    Specail sizes also avaiable to specific storage needs

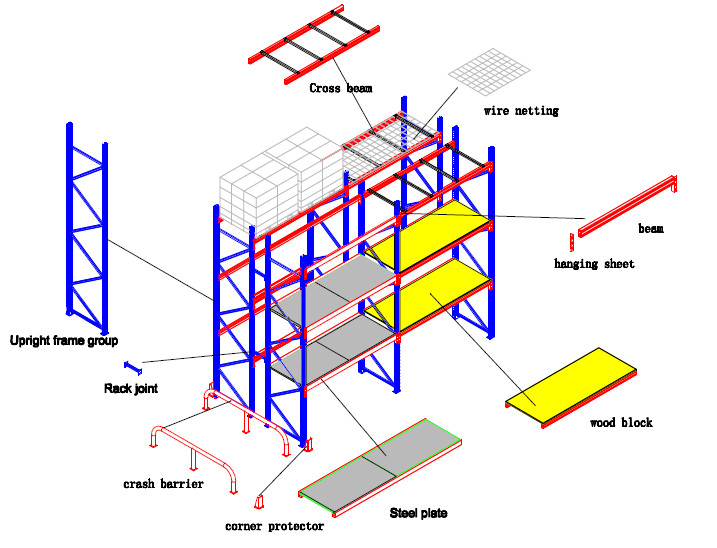

    3. Main Parts Specs

    Upright section:80*60*1.5/2.0mm 90*65*1.5/2.0mm, 100*70*2.0/2.5mm,

    120*95*2.0/2.5mm ect

    Pallet size : 1200*1200*100mm 1200*1000*100mm

    Plastic pallet 1200*1200 1200*1000mm

    Box beams section: 80*45mm, 100*45mm, 120*45mm, 140*45mm,

    160*45mm,180*45mm etc.

    Horizontal & diagonal braces, upright footplates, safety locking pins,

    bolts & nuts, anchors and all necessary components.

    4. MaterialHigh-quality steel,Q235
    5. FinishHigh-quality Powder Coating Finish
    6. Quick Delivery

    Within 25 days for ordinary order quantity. Big production capacity allow us

    in a position to make quick delivery.

    7.CertificationAS4084, ISO9001, ISO14001,ISO18001,MTS

    Competitive Advantage:


    We are a renowned company engaged in manufacturing of a precision engineered range of mold rack. These racks provide the solution to use the existing overhead space, thus saves the cost of conventional building expansion. The racks offered by us are prefabricated and custom-designed to suit the requirements of our clients. These are offered to our clients at competitive prices.


    Anti Corrosion Heavy Duty Garage Racking , Q235B Cold Steel Steel Racking SystemAnti Corrosion Heavy Duty Garage Racking , Q235B Cold Steel Steel Racking System

    Anti Corrosion Heavy Duty Garage Racking , Q235B Cold Steel Steel Racking System


    1. Q: Are you a factory or trading company?

    A:we are a manufacturer for shelving storage rack.

    2. Q: Where is your factory located? How can I visit there?

    A:Our factory located in DongDuan City Guangdong Province ,China ,You can fly to Guangzhou or Shenzhen airport directly .We will pick you up on Guangzhou or Shenzhen international .All our clients ,form home or abroad ,are warmly welcome to visit us!

    3. Q: What is the term of payment?

    A: 1) T/T payment. 2) LC

    4. Q: What is the raw material of your products?

    A: As general, the raw material of steel code is Q235.

    5. Q: Which port will be used as loading port?

    A: Shenzhen and Guangzhou port.

    6. Q: What is delivery times?

    A: It depends on the order quantity and racking types
