Adjustable industrial Superlock pallet warehouse racking system
Heavy Duty Storage Racks
Product Description
| Feature of the racking | |
| Surface treatmet: | power coated; |
| Packing: | air bubble film or upon customer requirments |
| Size | As customer's request; |
| Container load: | 10-15 ton per 1x20 container, 20-25 ton per 1x40 container |
| Payment terms: | TT/ Sight LC |
| MOQ: | 1*20ft container |
| Delivery terms: | 15 days for 1x20 container, 20 days for 1x40 container |
1) Dimension can be customized
Length:1200/1400/1900/2300/2500/2700/3200/3300mm
Width: 800/900/1000/1100/1200mm
Height:
1500/2000/2500/3500/4000/4500/5000/5500/6000/6500/7000/8000mm
2) Material :high grade Q235 cold rolled steel
3) Vertical Upright specfication: 80*60,90*65,100*66,120*66mm
4) Boxed Beam specification:
80*45,100*45,110*45,120*45,140*45,160*45mm
6) Bearing Capacity: 1000~6000kgs or 2200~13200lbs.
7) Package: Brown carton/Air bubble pack/ PE stretch film.
8)Upright is formed by high-quality cold rolled steel, with an
omega shaped section and hole distance 50mm or 75mm;
9)Box beam or step beam used. Beam can be freely adjusted by pitch
50mm or 75mm;
10)Connection of the upright and beam is by wedging, equipped with
safety pin to make sure of the safety;

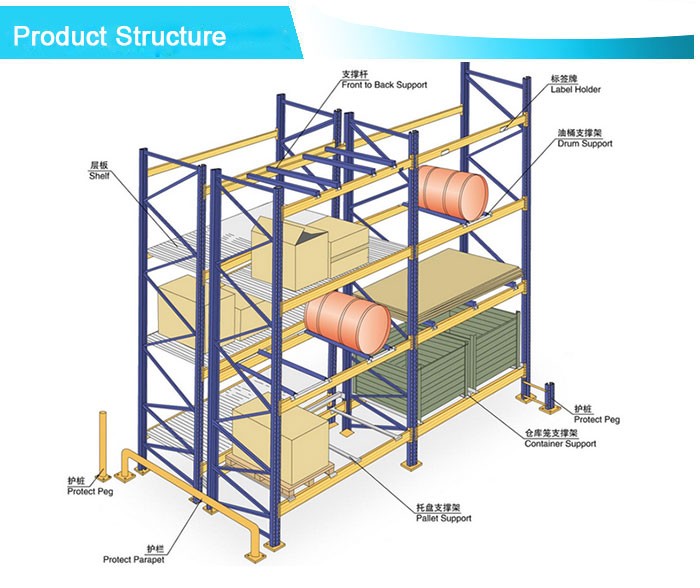

11)Rich accessories: upright protector, guide rail, frame barrier,
row spacer, wire decks, steel shelf, etc.;
12 )Stable structure, large loading capacity, convenient sorting;
13 )First level pallets can be placed on the floor;
Features:
1>The simplest, lowest cost, most popular racking system in the
world.
2> Convenience to stock management.
3> Easy to store and pick due to direct access to all pallets.
4>Compatible with many handling equipment styles.
5>The height between levels can be adjusted easily by
50/70/76.2mm pitch interval.
6> Lower level pallets can be located on the floor for picking
purposes.
7>Ideal for warehouses, which need to keep a wide variety of
products.
8> Fully compatible with Dexion racking system, allowing you
replace parts or add new bay based on the existing racking system.
9> Disadvantage: Low efficiency for utilization of space,
storage density is low with only 35% floor space and only 25% cubic
space used.
Our company is established in 2008 , and it is a profession
warehouse and logistic equipment company.
We are specialized in designing, manufacturing and installing
storage equipment and aiming to provide
cost-effective and space utilization storage solutions for all
customers worldwide .
We have over 98,000 square meters of factory area and more than150
skillful staff members ,including 8 experienced R & D
engineers.Besides ,our company introduced 6 automatic production
lines of rolling and curved steel and two static powder coating
lines from Switzerland, Germany, United States and Japan in 2008,
which ensures the good quality and high quality of our products.All
our products and operation are ISO:9001 certified , and all our
racks / shelving are approved by SGS company .
Our main products are heavy duty rack,medium duty rack, light duty
rack, cantilever rack, mezzanine floor, drive in rack, and so on.
We export to many kinds of countries: USA, Britain, Russia, New
Zealand, Sigpore, The United Arab Emirates
Bangladesh, Australia, Guyana and so on.
Welcome to visit our company.
Please inform us of the following information for quick quotation:
1) Size of your warehouse;
2) Full details of size L*D*H;
3) How many bays you want;
4) How many layers you want;
5) Loading capacity of each layers;
6) RAL color you require;
7) Drawing (if available).
Please contact us for more warehouse shelving, racking, wire
container, filing shelving, etc.
