Logistics Storage Equipment Drive in Pallet Rack for Industrial
Warehouse
Specifications:
Most high-density Drive In Rack is little more than conventional
pallet rack, adapted and reinforced to meet the stringent demands
of drive-in applications.
IRACKING Drive In Rack provides the space efficiency and high
volume storage of block stacking, with easy access to pallets.
There are no aisles and no cross beams, providing maximum space
efficiency. And because each pallet sits on its own support rails,
pallets are no longer stacked on top of each other.
Stable and highly space efficient, drive-in racking provides
maximum use of storage volume together with fast input and
retrieval of pallets.
| Product Name | Drive In Pallet Racks |
| Customized Specification | Drive-in Racking is available in a range of sizes and
configurations. Please call or email us and we can work together to
get the most cost-effective and practical solution. |
| Pallet Rail Levels | 2 levels, 3 levels, 4 levels, 5 levels |
| Load Capacity per Pallet | 500KG, 800KG, 1200KG, 1500KG, 2000KG |
| Raw Material | high quality cold rolling steel Q235B(SS400) purchased from
Shanghai Baosteel Group |
| Material Thickness | 1.5mm, 1.8mm, 2.0mm, 2.5mm |
Drive In / Drive Thru Pallet Rack Features and Benefits include:
Highest density pallet racking system available.
Makes best use of the available surface and height space than any
other system.
Allows for load flexibility in regards to both weight and volume
Additional Pallet Rack Benefits:
Maximized space utilization.
Improved SKU management.
More efficient picking abilities with less chance of errors
Less on-hand inventory and more inventory turns
Improved on-time product delivery by consolidating orders with less
errors.
Increased product protection
Description:

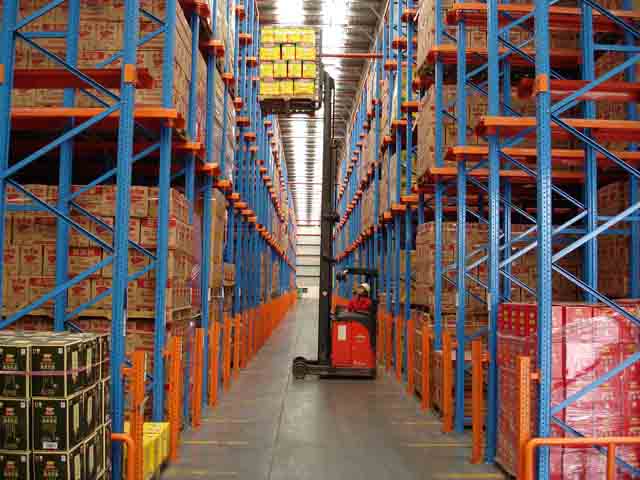

Drive In / Drive Thru Pallet Racking Systems are ideal for
facilities that store large amounts of
the same items. You can store up to 75% more pallets than with
conventional pallet rack
and your over square footage needs can be reduced by up to 35%.
This pallet racking system is made up of a set of racking units
that form inner loading aisles that have
support rails for the pallet loads to rest on. The forklifts enter
these inner aisles with their loads held
higher than the level at which it is to be deposited. Each loading
aisle has support rails on both sides.
These are arranged on different levels and the pallets are placed
on top. Drive-In pallet racks - you use
the same entry and exit point on each aisle / storage bay to access
your loads, creating last-in/first-out storage. Drive-Thru pallet
racks - you use both the front and back of each aisle / storage bay
to access your loads, creating firstin/first-out storage. Height
and depth can be designed to meet
your specific needs.
Applications:
1.In order to store large quantities of similar goods and the
design is for appropriate accessing a large
number of small varies of goods in virtue of a high utilization of
space.
2.Goods can be taken out into one side and it can be according to
the FIFO principle,
especially for those cyclical bulk operations and access to raw
materials of high-frequency
Transit or storage warehouse.
