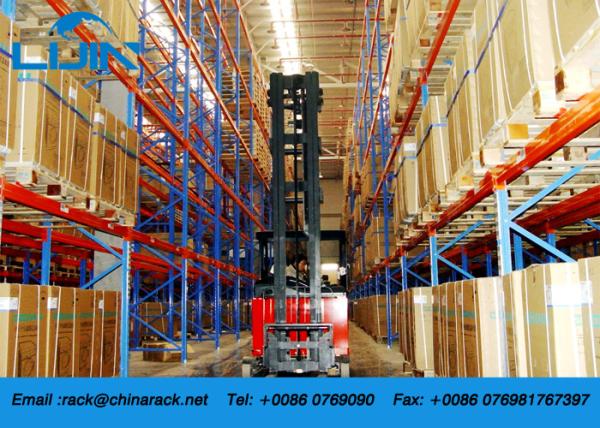

Selective Q235 Steel Warehouse Heavy Duty Storage Pallet Racks
Specifications:
1), The most popular and economical racking in warehouse;
2), Upright is formed by high-quality cold rolled steel, with an
omega shaped section and hole distance 75mm;
3), Box beam or step beam used. Beam can be freely adjusted by
pitch 75mm
4), Connection of the upright and beam is by wedging, equipped with
safety pin to make sure of the safety;
5), Rich accessories: upright protector, guide rail, frame barrier,
row spacer, wire decks, steel shelf, etc.;
6), Stable structure, large loading capacity, convenient sorting;
7), compatible with most type of handling equipment and building
structures;
8), First level pallets can be placed on the floor;
The rack that we produce can be customized according to your needs.
We will give you a quotation as soon as possible when your detaied
requirements are sent to us.
Please inform us the listed questions in your inquiry for quick
quotation:
A) The warehouse layout plans
B) The size of racking(length*width*height)
C) How many layers for each rack that you want
D) How many racks you want
E) The loading capacity of each pallet
G) The price you want(EXW,FOB,CIF)
| 1. Features | Infinitely adjustable and offering a wide range of options and
components to accommodate specialized needs. |
| Maximizes space use in any warehouse configuration while retaining
optimum product accessibility. |
| Rapid handling of almost all types of palletised goods. | | |
| Pallets can be located, accessed and moved individually. | | |
| Strength and rigidity prevents compression damage to goods. | | |
| Bottom level of pallets can be stored on the floor, lowering
structure costs. |
| 2. Load Capacity & Dimension | Loading capacity: 800-6,000 kgs/beam level |
| Height: 1,000-11,000mm |
| Depth: 400-1,500mm |
| Length: 1,500-3,300mm |
| Specail sizes also avaiable to specific storage needs |
| 3. Main Parts Specs | Upright section:80*60*1.5/2.0mm 90*65*1.5/2.0mm, 100*70*2.0/2.5mm,
120*95*2.0/2.5mm ect |
| Box beams section: 80*45mm, 100*45mm, 120*45mm,
140*45mm,160*45mm,180*45mm etc. |
| Horizontal & diagonal braces, upright footplates, safety locking
pins, bolts & nuts, anchors and all necessary components. |
| 4. Material | High-quality steel,Q235 |
| 5. Finish | High-quality Powder Coating Finish |
| 6. Quick Delivery | Within 25 days for ordinary order quantity. Big production capacity
allow us in a position to make quick delivery. |
| 7. Certification | AS4084 |
Description:
1> The simplest, lowest cost, most popular racking system in the
world.
2> Convenience to stock management.
3> Easy to store and pick due to direct access to all pallets.
4> Compatible with many handling equipment styles.
5> The height between levels can be adjusted easily by
50/70/76.2mm pitch interval.
6> Lower level pallets can be located on the floor for picking
purposes.
7> Ideal for warehouses, which need to keep a wide variety of
products.
8> Fully compatible with Dexion racking system, allowing you
replace parts or add new bay based on the existing racking system.
9> Disadvantage: Low efficiency for utilization of space,
storage density is low with only 35% floor space and only 25% cubic
space used.
Competitive Advantage:
We are a renowned company engaged in manufacturing of a precision
engineered range of mold rack. These racks provide the solution to
use the existing overhead space, thus saves the cost of
conventional building expansion. The racks offered by us are
prefabricated and custom-designed to suit the requirements of our
clients. These are offered to our clients at competitive prices.
