Rigid Cold Rolling Steel Lumber Storage Cantilever Rack for
Industrial
Specifications:
Provide flexible storage and easy access to your non-pallet-sized
material such as lumber, pipe, tubing, steel bars and furniture.

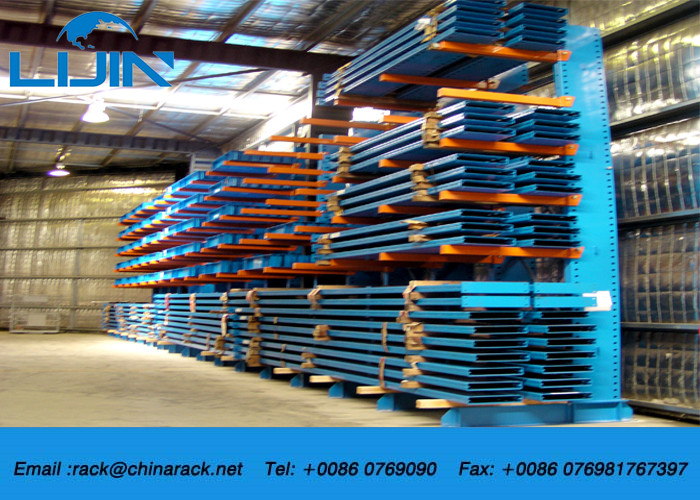

Cantilever rack is a freestanding storage unit with horizontal load
carrying arms extending outward from a single vertical column. The
absence of a front column makes cantilever rack faster and easier
to load and unload than selective pallet rack, lowering your
handling time and costs.
Available in single and double-sided configurations, cantilever
rack is made of four basic components: towers, bases, arms and brace sets.
| Product Name | Cantilever Racking System |
Unit Bay Standard Specification Extra Bay Added × W1200mm (Customized Sizes Available) | Single Sided | Double Sided |
| W1200×D600×H2500mm | W1200×D1200×H2500mm |
| W1200×D1000×H3000mm | W1200×D2000×H3000mm |
| W1200×D1200×H3600mm | W1200×D2400×H3600mm |
| W1200×D1500×H4800mm | W1200×D3000×H4800mm |
| Cantilever Rack Levels | 2 levels, 3 levels, 4 levels, 5 levels......11levels |
| Arm Length | 600mm, 1000mm, 1200mm, 1500mm |
| Arm Load Capacity | 300KG---2500KGper arm |
| Raw Material | high quality cold rolling steel Q235B(SS400) purchased from
Shanghai Baosteel Group |
| Material Thickness | 1.5mm, 1.8mm, 2.0mm, 2.5mm |
| Surface Treatment | deoil, derusting and powder coat paint finish |
| Rack Colors | standard blue, orange and customized available |
| HS Code | 7308900000 |
Competitive Advantage:
Dongguan Lijin Storage Equipment CO., LTD,the integrated supplier
of logistics equipment with automatic
technology for core competence.Featured list of products such as
AS&RS system,stacker,warehouse
managing system,warehouse rack as well as automatic logistics,are
in full compliance with international
standards,FEM(European Hoisting Conveying Machine
Association&Automatic Warehouse) and
SEMA(European Warehouse Equipment Manufacturers Trade
Union/EUROPE).In the past ten years,
Lijin has successfully provided innumerable solutions and became
the member of National
High-tech Manufacturer,Warehouse&Logistics Standard Draft and
Guangdong Warehouse Logistics Association.
We have tested the loading capacity of each arm. The result is that
2500kg/arm is no problem. The height we can make is 5 meters.
Please inform us the listed information in your inquiry for quick
quotation:
A) The warehouse sketch
B) The size of cantilever rack (length*width*height)
C) How many bays you want
D) How many layers you want
E) The loading capacity of each layer
F) The color you want
