    Professional Light Duty Racking For Warehouse Storage Save Space Level Optional

    Ask Lasest Price
    Brand Name : generalization
    Model Number : MAD-067
    Certification : AS4084
    Price : According to rack size
    Supply Ability : 5000 sets per month
    Delivery Time : According to the size of product
    • Product Details
    • Company Profile

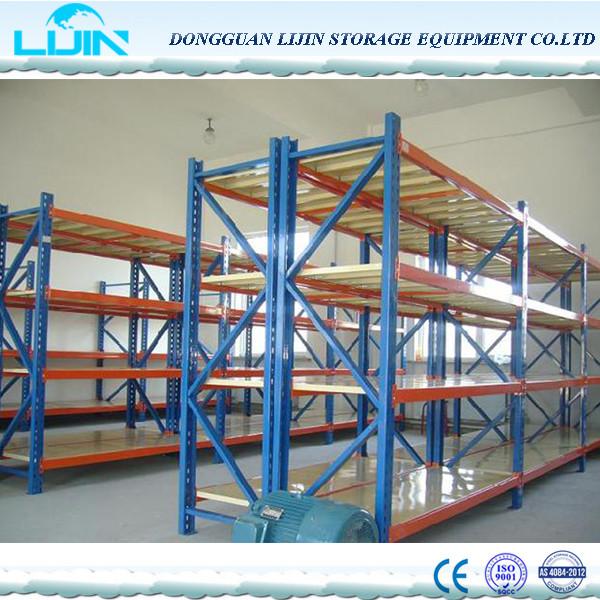

    Professional Light Duty Racking For Warehouse Storage Save Space Level Optional

    Professional ISO9001 , AS4084 and CE Certification Light Duty Racking for warehouse storage​


    Specifications:


    Product NameLight duty racking
    Standard Specification
    (Customized Available)
    W1500×D500×H1500mm W1500×D500×H2000mm
    W1800×D500×H1800mm W1800×D500×H2000mm
    W2000×D600×H1800mm W2000×D600×H2000mm
    W2200×D600×H2000mm W2200×D600×H2200mm
    W2400×D700×H2200mm W2400×D700×H2400mm
    W2600×D800×H2400mm W2600×D800×H2600mm
    W2800×D900×H2600mm W2800×D900×H2800mm
    W3000×D1000×H2800mm W3000×D1000×H3000mm
    W3000×D1000×H3500mm W3000×D1000×H4000mm

    Rack Levels

    (Customized Available)

    3 levels, 4 levels, 5 levels, 6 levels
    Load Capacity per Level200KG, 300KG, 500KG, 700KG, 1000KG
    Raw Materialhigh quality cold rolling steel Q235B purchased from Shanghai Baosteel Group
    Material Thickness1.2mm, 1.5mm, 1.8mm, 2.0mm, 2.5mm
    Surface Treatmentdeoil, derusting and powder coat paint finish

    Rack Colors

    (Customized Available)

    standard blue, orange and customized available
    HS Code7308900000

    Advantages about light duty rack:


    1. The rack is connected with the plates and angle steel through the pins and special screws.

    2. Tha advantage is the light weight,heavy load capacity,artistic shape and freely to assemble and disassemble.

    3. The plate can be adjusted vertically in the pitch of 50mm.

    4. Each layer load bearing may reach 400kg most greatly under the uniform distribution condition.

    5. The surface of the shelving was painted with electrostatic powder.

    so the shelf can satisfy the needs from warehouse ,factory,accembly line and storage supermarket.

    6. Easy to assemble ,dismantle and adjust with a comprehensive range of sizes ,colors and configuration


    Competitive Advantage:


    We have specialized in racks more than 10 years and have a good reputaion. Our products export to many countries. We are factory and can guarantee delivery date. Welcome to visit our company.

    We have a good team. First, we will design the plan for you according to your requirments and then the quotation can be sent to you as soon as possible. Please look at the drawing and know more details.
