S355JR Q355 Heavy Duty Storage Racks with Bolted Welded Structure

Storage racks heavy duty shelf metal rack high quality industry warehouse rack factory manufacture

Structure and components

Pallet rack is made up of frame (consist of upright, horizontal and diagonal bracing and connecting parts) and beam, spacer, back stopper, pallet support, wire mesh decking, etc. Frame and beam are the necessary components, other are optional. It is bolted structure and could be installed and dismantled easily.


Frame	Beam	Frame protector	Upright protector


Pallet support I	Pallet support H	Pallet support #	Wire mesh decking

To suit different products, there are other optional parts available.Please tell your needs when send us inquiry.

Following table may include something you want to know

Rack Type			pallet racking
Rack Cost			√Low, Medium Low,Medium,Medium high,High,Higher
Pick-up Mode			flexiable
Structure			bolted,welded structure available
Forklift Asile			around 3200mm,depends on customer's forklift parameter
Components	core components		frame(upright,also called column or post,bracing,base plate,fasteners),beam
	highly recommended components		upright protector,frame protector
	optional components		spacer,wire mesh decking,board,back stopper,top tie,side mesh,pallet support,etc.
Core Components Specification	upright section	face	80mm,90mm,100mm,120mm
		height	60mm,67mm,70mm,95mm,135mm
		thickness	1.5mm,1.8mm,2.0mm,2.3mm,2.5mm,3.0mm
		adjust step	75mm
	beam section	height	80mm,100mm,110mm,120mm,130mm,140mm,160mm,180mm
		width	50mm
		thickness	1.5mm,2.0mm
Material			Q235(ss400),Q355(S355B,S355JR)
Finish			Epoxy resin electrostatic spraying(powder coating)
Coating thickness			no less than 60um for average thickness
Color			ral5015(sky blue),ral5005(signal blue),ral2004(pure orange),ral1003(signal yellow),ral7035(light grey) Customized colors are available when order above 2*40gp containers

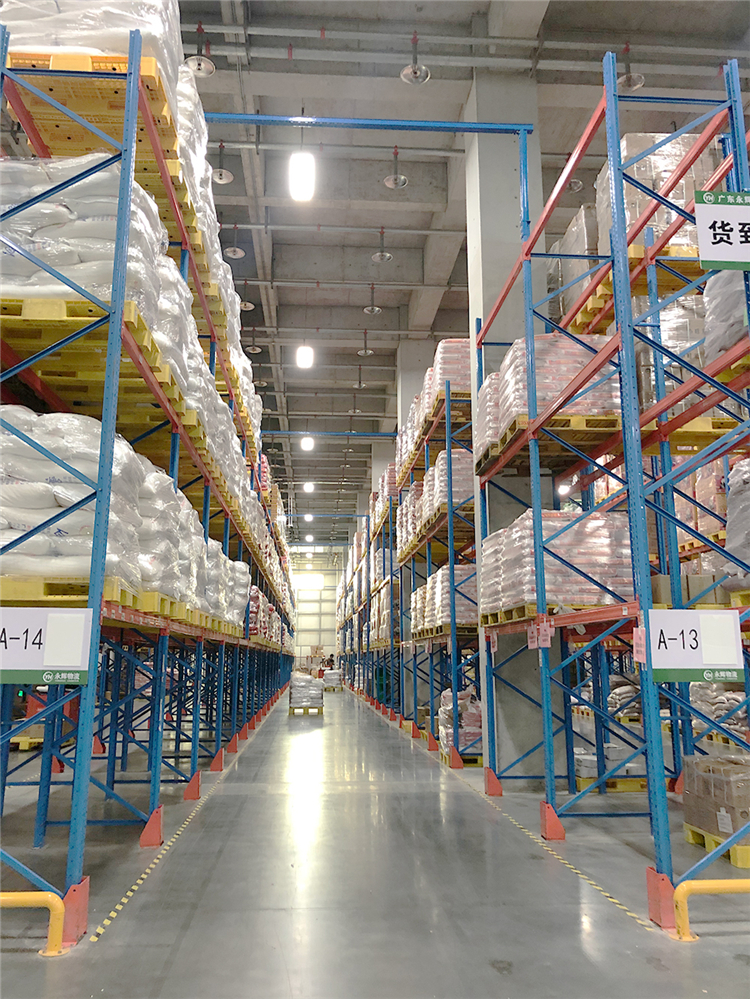

4 layer storage pallet racking system with vertical forklift aisle toped with wire mesh decking
