Heavy Duty Selective Pallet Racking System Customized Beam Length

Ask Lasest Price
Brand Name :	Lijin Rack
Model Number :	HD-NC1001
Certification :	ISO9001; AS4084
Delivery Time :	15-25 days after receiving the deposit

Add to Cart

Product Details
Company Profile

Heavy Duty Selective Pallet Racking System Customized Beam Length

Customized Heavy Duty 4.5T Per Layer Metal Warehouse Storage Pallet Shelving Rack

Product Name	Specifications
Details:	Heavy Duty Shelving Racks is specifically constructed and designed for tough loads between 1000kg - 4500kgs/UDL(Uniformly Distributive Load) where it is the most suitable system for heavy-capacity warehouse users. With our own innovation, the box beam as the levels increased the loading capacity of the Heavy Duty Shelving Rack System. In addition, the versatility of the box beam bracket enables easier installation process as well as the dismantling process in according to customers' application.
- Oversize: beam length - customized ; upright frame - customized - Layers: selective - Weight capacity: 1000 ~ 4500kg/layer - Color: blue, white and orange red

Specifications:

1. Supply to USA, Europe, Austrilia and so on;
2. Matrial: Q235B
3. Payment terms : After signing PI,pay 40% be the deposit, pay 60% balance before delivery.
4. Superficial treatment:

Storage rack surface adopt epoxy resin static paint finishing treatment, the thickness of the coat is 60-80

microns.Spray process: remove exteriol oil→parkerising→washing by high pressure→parch→static paint

finishing→solidify under high temperature.

Heavy Duty Racking System

*** It was made up with uprights frame, beam and steel plates, easily to be assembled.

*** Features:
The beam allowable flexivity length is 1/200,upright max. allowable flexivity height is 1/1000. Upright hole distance is 75 mm,the beams can be adjusted height arbitrarily, particular rhombus hole design,can be used convertly. There have safety bolt on the beam to prevent moving the beams when the fork truck is raising and dropping.

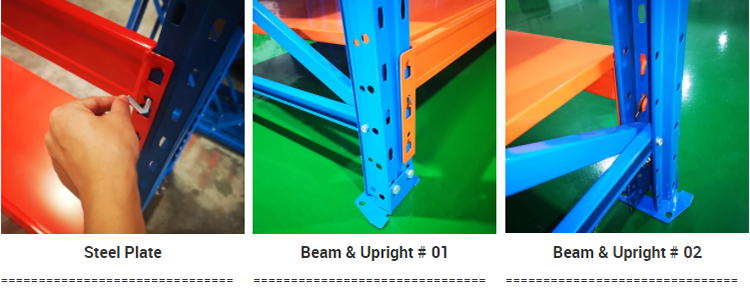

Rack details:
